Home / Widespread (Three-Hole) Faucets / RV-BF254-BG
Widespread (Three-Hole) Faucets
RV-BF254-BGFlat Spout Widespread Bathroom Faucet – Brushed Gold
Finish: Brushed Gold
Key features
- Lead-free brass body, zinc handles
- cUPC certified brass cartridge
- NEOPERL aerator
- Maximum 2.2 GPM @ 60 PSI
- One pair of water supply lines and one connecting hose
- Lift rod included
- Certified to ASME A112.18.1-2018/CSA B125.1-18
SKU RV-BF254-BG
Technical information
RV-BF254-BG
Specifications+

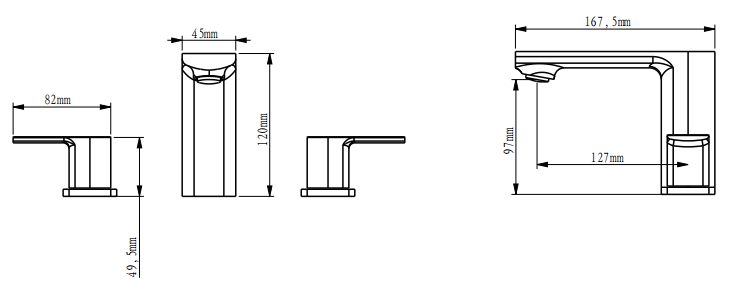

| Spout height | 4-3/4" (120 mm) |
|---|---|
| Spout length | 6-5/8" (167.5 mm) |
| Spout reach | 5" (127 mm) |
| Spout outlet height | 3-13/16" (97 mm) |
| Spout width | 1-3/4" (45 mm) |
| Handle length | 3-1/4" (82 mm) |
| Handle height | 1-15/16" (49.5 mm) |
| Mounting holes | 3 (widespread) |
| Model / SKUs | RV-BF254-BG |
Technical downloads+
- Spec SheetSpec SheetPDF ↓
Installation+
Refer to the spec sheet for dimensions and rough-in information. Professional installation by a licensed plumber is recommended. For installation questions, use Request Information above.
